Video Enhancement Systems

Real Time Image Enhancement for Analog Video, available as a stand alone system or the new OEM Lyyn Hawk board for integration in your

ROV or camera system

The Lyyn T38

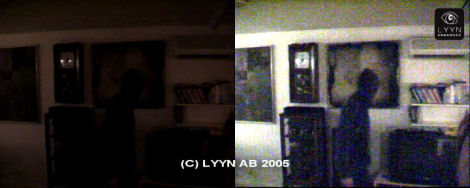

Image enhancement: intruder in low light before and after Lyyn enhancement.

This innovative new technology is called LYYN Visibility Enhancement Technology (V.E.T.). Visibility is enhanced (particularly the possibility to see colors, movement and contours) in fog, snow, dust, sand, darkness, etc as well as under water and in medical applications. V.E.T. works on digital images and video from normal cameras, but can also be used in processing saved material such as archived video tapes.

Image enhancement: Fish in murky water before and after Lyyn enhancement.

Image enhancement: Pedestrians on a snowy day before and after Lyyn enhancement.

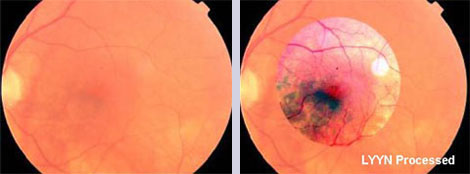

Image enhancement: Human retina before and after Lyyn enhancement.

The Lyyn system works with real time video or with video tapes or other stored media, using color enhancing technology to bring out details obscured by smoke, haze, fog, snow and suspended solids. Now take a closer look in hard to view environments.

SPECIFICATIONS for the Lyyn T-38

• Supported video formats: Analog PAL and NTSC (Time Base Correct, Internal Sync)

• Frame rate: PAL: 25 fps, NTSC: 30 fps

• Source : Real-time live video feed or Stored material, e.g. from VHS player, video camera, etc

• Buffering: 1 frame Delay PAL: 1/25 second, NTSC: 1/30 second

• Image settings: Lyynification level, Rectangular selection, size and position

• Connectors: BNC analog video, NTSC/PAL auto sensing

• Housing: Metal casing. Standalone.

• Operating conditions: 5-50°C (41-122 °F)

• Humidity: 20-80% RH (non-condensing)

• Included Accessories : Power supply 12V DC, 12V car plugVideo cable, BNC connectors, 2 BNC to RCA video connector adaptors

• Dimensions: 54x172x184 (HxWxD in mm)

• Weight: 925g, excl. power supply
