Instruments for Spectroscopy

Click the images to learn more:

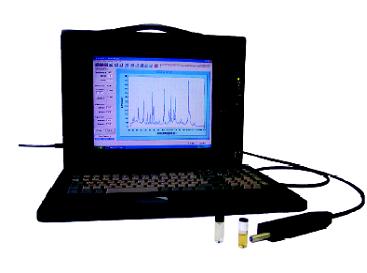

The InSITE remote analyzer

The new InSITE remote spectrographic chemical analysis system for in-situ analysis of deposits in nuclear power plants and other hazardous locations.  Determines the composition of unknown deposits without removing or even touching a sample.

 Enhanced performance for standoff detection explosives and explosive precursors.

Winner of the Top Industrial Practices Award from the Nuclear Energy Association for determining boric acid in nuclear power plant applications.


The Nanofinder Microspectroscopy Spectroscopy System

Confocal Raman Microspectroscopy is a indispensable technique for materials science, geology, biology, medicine, forensic science, and even arts and antiquities.  Our Nanofinder provides the highest spatial resolution available and three dimensional imaging.

 Designed for low level signal detection, the “Nanofinder 30”has applications in 3D Raman and photoluminescence imaging, single molecule fluorescence detection, Raman spectral and spatial analysis of a variety of materials such as semiconductors and semiconductor devices, CVD artificial diamond arrays, carbon nanotubes and living cells.


Zeta Potential Analyzer



NEW: The New Zeecom ZC3000 zeta potential analyzer:

Automatic Tracking of Particles by Image Analysis Processing

  • Direct observation of nano particles using scattered light.
  • The captured still images are saved every second,
    which enable the remeasurements.

What is Zeta Potential?  CLICK HERE for a description.

Application Fields

  • Environment
    Water treatment, waterworks, flocculation agents, dispersants, flocculation control, microorganisms, planktons, asbestos, bubbles, soil, beneficiation technology, and etc.
  • Nano-materials
    Functional material developmentArecording materials, pigments, ceramics, catalytic agents, polymers, carbon black, carbon nanotubes, inkjet inks, aqueous/non-aqueous solvent paints, fuel cells, coating materials (for automobile parts / electronic parts), paper manufacturing, surface active agents, and etc.
  • Life Science
    Erythrocyte, biological cells, protein, DDS, liposome, vesicle, drug discovery, and etc.

Features

  • Zeta Potential Measurement
    Microscopic electrophoresis method
    Automatic tracking in image processing
    Visual and manual measurement of individual particles
  • Image capture of particles
    Image archive / Remeasurement function
  • PC-controlled instrument
    Stage control / Voltage feedback control / Switching control for optical system

Analysis modes

Mobility / histogram / frequency curve / mean value / peak value / dispersion / flow velocity distribution / pH responsiveness / isoelectric point / digitization size and zeta potential / temporal change

Specifications

Product model ZEECOM ZC-3000
Zeta potential measurement range -200 to 200 mV
Mobility -20 to 20 cm2/sec⋅V
Particle size range for zeta potential measurement 20 nm to 100 µm
Supply voltage 0 to 350V DC *Applicable voltage to electrodes (compatible with external power supply)
Weight 25 kg
Power supply AC100V 1A 50/60 Hz
